Description

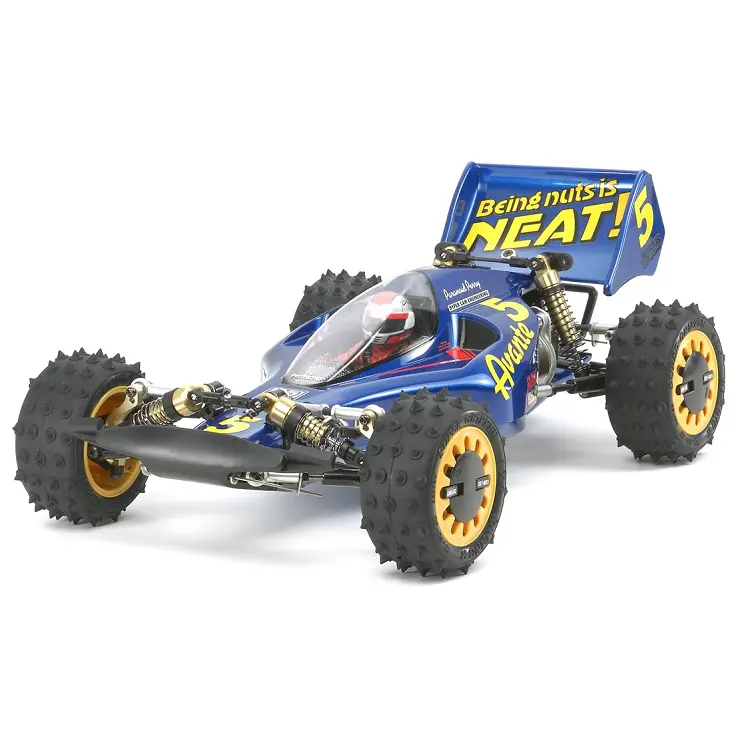

TAMIYA AVANTE (2011) Kit 1:10 – 58489
The Tamiya Avante 2011 HI-PO Race 1/10 4WD Off-Road Electric Buggy Kit is a re-release of a Tamiya classic! In March 1988, Tamiya released an electric R/C 4WD racing buggy called the “Avante” and it has since become a special machine in Tamiya’s R/C history. The machine featured a unique shaft-driven 4WD system which was taken from Tamiya’s first 4WD R/C buggy, the Hotshot. It also featured a highly sophisticated design including a FRP double-deck chassis layout, longitudinal motor & battery positions, and a formula-type body with chassis fairing. It was equipped with innovative components such as a compact gearbox with 3 small planetary gears, a centre diff to increase stability, a fully adjustable suspension, and cam-lock wheel caps. In fact, the Avante was such a distinctive R/C machine, many of its mechanisms have become standard features on modern R/C cars.
In 2011 the Avante made its return to the Tamiya library of R/C car offerings. It has a few updates, such as universal drive-shafts and machined aluminium uprights, to give the 2011 version increased durability and performance over the original.
NOTE: Finished kit shown in photos is for illustrative purposes only. See needed to complete list below for a full list of items required to complete the model.
Features:
- 4WD Off road kit
- Many improvements included in the re-release
- Longitudinally-Placed Motor Shaft-Driven Full-Time 4WD
- 3-Piece Steering Tie-Rod
- 4-Wheel Double Wishbone Suspension
- Front & Rear Oil Dampers
- Type 540 Motor (25T)
SPECS:
- Adjustable Gear Ratio Yes
- Bearings shielded ball bearing
- Body Material Clear Polycarbonate
- Body Stickers Included
- Chassis Material Fiberglass plate
- Construction Type Assembly Kit
- Differential Type Gear
- Discontinued True
- Drive Type 4WD
- Led Light Buckets no
- Led Lights no
- Scale 1/10
- Gear Ratio: 1:8.33
- Shock Damper Oil-filled damper
- Dimensions: Length: 420mm, Width: 240mm, Height: 115mm
- Wheelbase: 260mm
- Tread (L/R): 200mm
- Minimum Ground Clearance: 40mm
- Weight: 1300g
- Double-Deck Frame
- Tires (F/R): 38/88mm
- Suspension Fully Independent Double Wishbone
- Terrain Use Off-Road
Need running gear?? Get our custom ready-to-run pack here:
Needed to Complete:
- 2-channel transmitter and receiver
- ESC
- Steering Servo
- 7.2 volt battery & compatible battery charger
- Tamiya PS Polycarbonate paint for body
