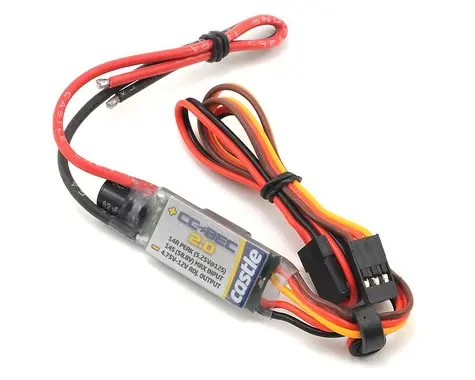

CASTLE CREATIONS BEC 2.0 BEC 14A Voltage Regulator CC-BEC-2.0 – CSE010015400
This is the Castle Creations BEC 2.0 BEC Voltage Regulator. The CC BEC 2.0 features heavy duty, dual output wires that will provide clean power to sensitive radio equipment. Castle Link2 can be used to set the output from 4.75 to 12 volts and power today’s power hungry servos, cameras, and other accessories.
Note: CC BEC 2.0 should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.
A BEC (Battery Eliminator Circuit) allows you directly apply battery power to high voltage and/or high speed servos.
Installation as follows;
1. Bare wires are soldered into the back of the battery plug
2. Black JST plug with 3 wires is for programming with Castle Creations program card
3. Black JST with 2 wires goes either to a vacant port in the receiver or an RX bypass. It has only 2 wires because the receiver cannot be powered twice and it is already powered through the ESC.
Specifications:
- Applications: Helis, Planes, UAS, Racing
- Waterproof: No
- Peak Current: 14A (dependent upon input and output voltage
- Continuous Current:
- 4.75~7.0V Output: 9A
- 7.25~8.5V Output: 8A
- 8.75~10.0V Output: 7A
- 10.25~12.0V Output: 6A
- Max Volts:
- Surface: 12S (50.4V)
- Air (w/Brake): 12S (50.4V)
- Air (No Brake): 14S (58.8V)
- Adjustable Output Voltage: 4.75 to 12V (set with Castle Link only – sold separately)
- Default Setting: 5.25V
- Size (LxWxH): 43x14x8mm (1.69×0.56×0.32″)
- Weight: 21g (0.7 oz) (with full length wires)
